Diaschismic Tuning

I continue my wandering in the vast world of musical tuning...

One of the first tuning calculations I performed was in 1976. I wrote a simple formula to give scores for possible tunings, to look for good ones. My idea was that a simple calculus-based optimization would yield an excellent result. I soon learned that this formula was not a matter of simple calculus. Now I have returned to evaluating tunings, with a simpler scoring forumula and simpler tunings. Still, a simple calculus optimization is not going to work with a graph like:

But here I am just looking at dividing octaves into some whole number of equal parts, so I can just sort the possibilities to see which are the best:

Here the number of steps in an octave is the column on the left, and the score is on the right. The score is based on how well the tuning approximates the exact harmonics 3 and 5.

The tunings 118edo, 87edo, and 53edo are ones I had worked with already. I had never given thought to 34edo, but there it is on the table! So I thought I should give it a try!

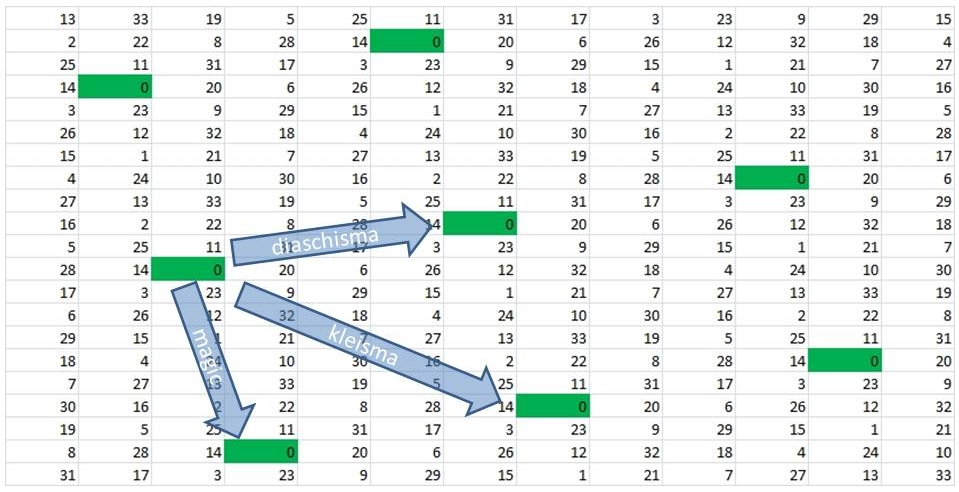

Another key feature of tunings like these is the commas that they temper. A Tonnetz diagram should help:

Each square represents a pitch class, e.g. the pitch C in conventional tuning. C can exist in any octave, but if we just ignore the octave, it's plain old C. There are 12 such pitch classes in conventional tuning. Here there are 34, and instead of using letters I use numbers. Since we're ignoring octaves, one microstep up from pitch class 33 is 0.

A key feature of these tunings is that they only have a finite number of pitch classes. Musically one can move up and down by various intervals, such as octave, perfect fifths, major thirds, etc. in an infinite variety. But there are only a finite number of places to land on. So, for any pitch class, there are an infinite number of ways to get there!

The Tonnetz diagram helps show how this works. Moving from any square to the square above it, that is moving by a major third (plus any number of octaves). In 34edo, a major third is 11 microsteps. Similarly, moving to the right one square is moving a perfect fifth, which is 20 steps. The part of the diagram I show isn't enough to see directly that e.g. by continuing to move by perfect fifths one will eventually circle back to the original pitch class. 20 and 34 have a common divisor 2, so 34 has two seperate circles of fifths, each 17 steps long: one circle for the even-numbered pitch classes, and one circle for the odd-numbered pitch classes.

But the Tonnetz diagram makes it clear that that are many other ways to move in harmonic space and end up back where you started. Intervals in 34edo are near approximations to just-tuned intervals: that's what my scoring formula was measuring. If one were to wander in some direction in just-tuned space, one would never return to the same pitch class except by undoing all the steps one had taken, though perhaps in a different order. Just-tuning requires, or provides, an infinite number of pitch classes. But if the 34edo intervals are close to the just-tuned ones, when 34edo reaches the same 34edo pitch class, the matching just-tuned movement must have reached some just-tuned pitch class quite close to 1:1. Such a just-tuned pitch class is known as a comma. A tempered tuning like 34edo is said to temper a comma when the harmonic movement that would result in that comma in just tuning instead, in the tempered tuning, returns to the same pitch class. In the Tonnetz diagram I have given the common names for the main commas tempered by 34edo.

I use algorithmic composition to explore alternate tunings. I can coax the algorithm in various ways to loop through, or pump, one or more commas tempered by a tuning. Here's a diaschisma pump in 34edo.

Studying the diaschisma a bit more, I realized that a nice 12 pitch class subset can be used to tune a conventional piano:

These pitches can be assigned to piano keys:

The main advantage of such a tuning is that some intervals are closer to their precise just tuning values than e.g. conventional 12edo. From the tuning goodness score table at the top of this post, one can see that 34edo has much better major thirds than does 12edo, while the perfect fifths are significantly worse. In that way, 34edo is similar to a meantone tuning like 31edo, also in the table. But then again, tempered commas are actually a compositional resource. Each tuning creates its own opportunities for making music.

That said, it's interesting to hear what a conventional composition sounds like in an unconventional tuning. This is a minuet by Telemann that I had put into software some years back, so it was easy to convert the tuning. I should note: conventional 12edo was not conventional in Telemann's time. I have no idea what he would have used: in those days, folks were quite creative in finding fresh ways to manage the compromises involved in tuning. I'd like to think that Telemann wouldn't object: Telemann minuet in 34edo diaschismic tuning.

Many high-end digital keyboards allow individual control of the tuning of each pitch class. Here is a tuning table for anyone who'd like to try this:
